Getting Started with AGS - Part 4

Objects

Objects are items on the screen which, unlike hotspots, can move, change and disappear. You use objects for things in the room that the player can take (since they can disappear), and for things which need to animate.

So, let's revisit the age-old "key" inventory item. Let's say we've got a locked door, and the player can pick up a key from another room to open it with. Please don't use this puzzle when you're making a proper game, it's been done far too many times ;-)

From the same list as we chose "Walkable areas" and "Hotspots" earlier, let's return there and select "Objects". Now, to add an object to the room, simply right-click on the background where you want to add it, and choose "New object here" from the menu which appears.

As if by magic, a blue cup appears! This is the default sprite in AGS, and will appear anywhere that you haven't selected a proper image yet. Notice that the property grid has changed to display the details of this new object -- one of which is a property called Image. Select this property, and a "..." button appears.

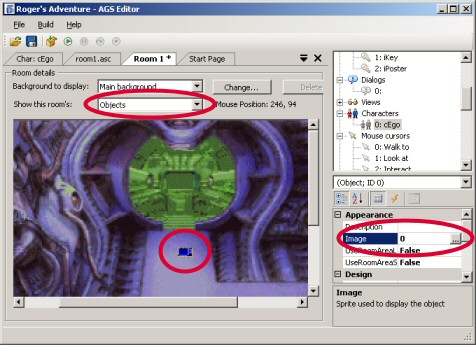

Adding an object to the room

Click the "..." button, and you'll be presented with the Sprite Manager. We'll explain this in more detail later, but basically it is the focal point in AGS where you import and export all your graphics except for room backgrounds. You should see a small key picture as sprite number 2. Double-click that for now, we'll import our own graphics later.

You should now see that the blue cup has changed into a key. You can move it around by left-clicking and dragging the sprite within the background image. Place it somewhere sensible on your screen.

The next thing we should do is give the object a name. Similar to what we did with hotspots, since the object will be referred to in the script it'll need a name that we can call it by. Scroll down the property grid and find the "Name" property, and set it to something sensible. The convention in AGS is to have object names start with an "o", for example oKey.

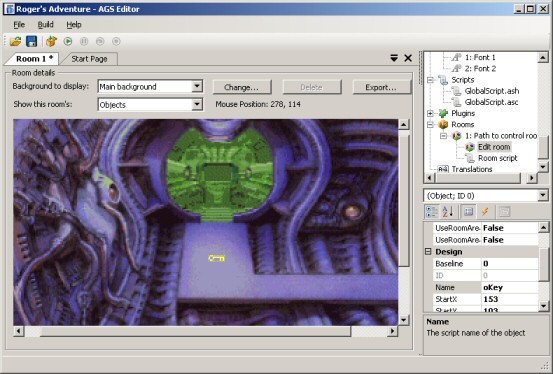

I've placed the key cunningly in the middle of the walkway ;-)

Before we enable the key to be taken by the player, let me quickly go over a couple of propertes in the property grid:

  • Baseline - normally, the baseline for an object is set to the bottom of the object graphic (baselines are used to calculate which items on the screen are drawn in front and which are drawn at the back). However, in some cases you might want to override this.
    What you'll notice with our key is that if the player walks just behind it, the key will appear in front of his feet. This is not what we want, since the key is supposed to be lying flat on the ground. To correct this, change the Baseline property to 5 (this means that it will be drawn behind everything that has a baseline lower down the screen than Y=5). This will make sure that the player is always drawn in front of the key.
  • Visible - this toggles whether the object is switched on at the beginning of the game or not. For our key we want it to be True, but sometimes you'll have objects which you don't want the player to see until they've done something else in the game.

The game speed is directly related to the number and size of objects on-screen. AGS imposes a limit of 20 objects per room, but even if you use all of these and have them visible at the same time, the game speed could suffer.

Right, now back to the pressing matter at hand - letting the player pick up the key.

Inventory

Now wait, there's one more step we need to do first. At the moment we could let the player pick up the key, but then what would happen to it? Where would it go? We need to define the player's inventory.

Select the "Inventory Items" node in the project tree. You'll see that there are already two items defined - "Key" and "Pink poster". These are just defaults to help you get started. Double click "1: iKey", and you should see a window open with the key image in it. But that picture's a bit small for an inventory item, I'm sure I saw something better in the sprite list earlier.

Find the "Image" property in the property grid, select it, and then click the "..." button. The sprite manager re-appears, so find sprite number 5, and you should see that it's a much larger picture of a key. Let's use that as our inventory icon. Double-click the sprite to select it.

Yay, we've got a big inventory icon for the key

Ok, there are a few other settings on this screen, but let's return to our objective - letting the player pick up the key. Remember that the script name is iKey, as we'll need it later.

Back to the events

Go back to the Objects pane of the Room Editor, and click on, yes you've guessed it, the Events button. The events here are very similar to the ones we had for the hotspot:

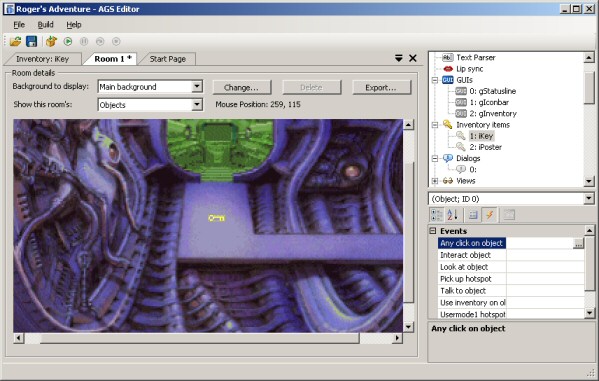

The events list for the object

Notice there are two obvious possibilities here: "Interact object" and "Pick up object". We actually want to use the "Interact object" event, because we are using the default Sierra-style interface which doesn't have a specific Pick Up mode. The "Pick up", "Usermode1" and "Usermode2" events are useful if you go for a lucasarts-style interface which has more verb types available to the player.

So, select "Interact object" and click the "..." button. When the player picks up the key we want two things to happen - firstly, the object on-screen needs to disappear, and secondly, the inventory item needs to be added to the player's inventory.

Here's my script solution. As an added bonus, I've also given the player 5 points for their trouble, but you don't need to have that third command:

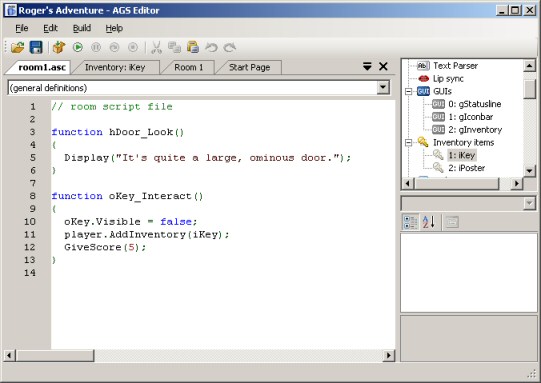

Script for taking the key

Note that our solution is not perfect - the player can click the hand icon on the key from anywhere in the room and it will disappear. We are also not displaying a message informing the player of what happened. But, the functionality is there, and this will do fine for now.

Okey, so we now have a fully-working first room. Test the game as before, and try it out. Once the player has taken the key, call up his inventory and you should see the large key picture there.

Room Settings

Finally, let's just quickly go over the available properties for the room itself (available when in Nothing mode):

  • PlayMusicOnRoomLoad - you can type a music number in the box and that background music will start playing when the player enters the room. For more about music and sound, see later in the manual.
  • SaveLoadEnabled - if disabled, then if the player tries to save or load the game while in this room, a message ("Sorry, not now") is displayed instead. .
  • ShowPlayerCharacter - if checked, the player character will not be visible in this room, and the Walk mode will be disabled. Useful for close-up displays of control panels and so forth.
  • PlayerCharacterView - you can type a number in here to override the player character's graphic for this room. For example, if you have an overhead map screen, you will probably want a different image of the character from an overhead perspective.
  • MusicVolumeAdjustment - this allows you to modify the background music volume for this screen.
